Series 5 · Q-Switched Nd:YAG
Regent R5 Q-Switched
Dual-Rod Nd:YAG — 1064nm / 532nm
The Regent R5 delivers nanosecond Q-switched energy from a single-lamp, dual-rod resonator through a seven-joint articulated light guide arm, with adjustable spot sizing and automatic energy intensity calculation.

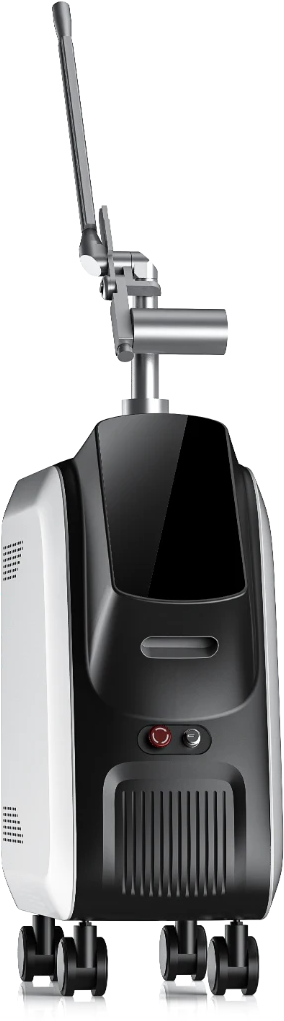

Seven-joint articulated light guide arm
Operator interface and resonator housing

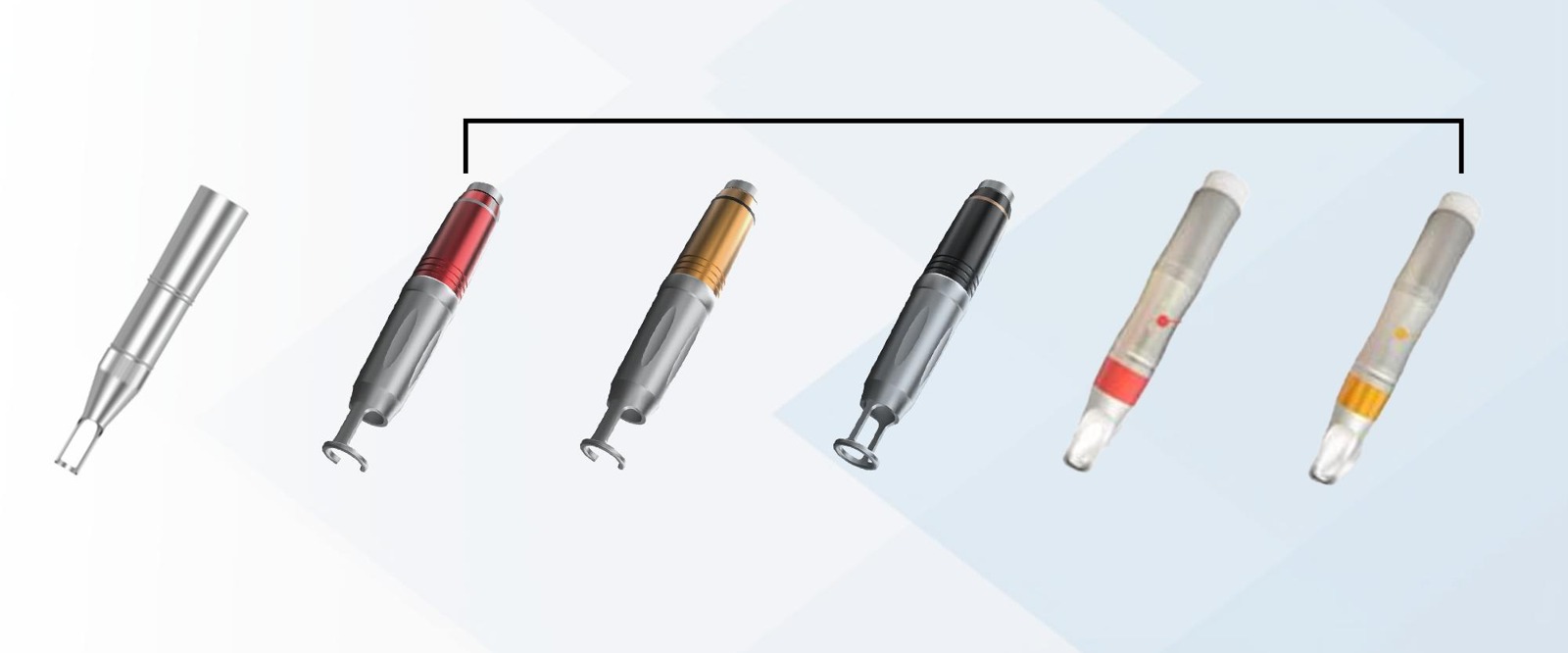

Standard and optional treatment probes
Specification sheet
Full technical parameters, capability detail, warranty conditions and regulatory status for the Regent R5 Q-Switched — PDF, prepared for professional review.
1064nm / 532nm
7ns Pulse
2–10mm Spot
1800W Max
Specifications
Technical parameters
- Treatment handle
- 1064nm / 532nm
- Optional handles
- 585nm, 650nm, honeycomb, Gaussian, fractional
- Output energy
- 1200mJ @ 1064nm, 500mJ @ 532nm
- Pulse duration
- 7ns
- Spot size
- 2mm – 10mm, adjustable
- Frequency
- 1Hz – 10Hz
- Treatment modes
- SP, PTP, Genesis
- Light guide arm
- Seven-joint articulated arm
- Cooling system
- Air + water cooling
- Power
- Max 1800W
- Voltage
- 110V / 220V, 50Hz / 60Hz
Capability
Intelligent operation
Single lamp, dual rods
The resonator pairs one flash lamp with two laser rods — Ø8mm × 130mm and Ø7mm × 130mm. For a given rod length, the larger rod diameter allows greater amplification and higher output energy.
1000W IGBT power supply
A high-wattage IGBT supply holds output energy stable so that shot-to-shot energy remains consistent, including at higher repetition rates.
Cellular uniform light lens
A cellular uniform light lens within the laser generator supports stable, evenly distributed output energy across the delivered spot.
Energy intensity detection
When output energy or spot size is changed, the software recalculates energy intensity so the operator can see delivered energy directly. Back-end energy calibration supports energy accuracy over time.
Articulated delivery
The seven-joint arm maintains stable energy output and a round spot across its working range, with spot size adjustable from 2mm to 10mm and a red aiming beam for precise positioning.
Configuration
Configurable handpieces
1064nm standard
Standard probe — included in the supplied configuration
532nm standard
Standard probe — included in the supplied configuration
Fractional probe
Optional — availability confirmed per configuration
Honeycomb handle
Optional — availability confirmed per configuration
Gaussian handle
Optional — availability confirmed per configuration
585nm / 650nm probes
Optional wavelengths — supplied only where confirmed in writing by Regent
Professional Safety
Class IV laser platform
This is a Class IV laser platform. It requires appropriate operator training, protective eyewear and control measures, and an operating environment that complies with applicable Australian legislation, standards and state or territory laser licensing requirements.
Compliance note
Australian regulatory status for this platform is recorded in Regent's compliance system and is not published until documentation for the exact device, manufacturer and configuration has been verified. No TGA, ARTG, FDA, clinical or safety claim is made on this page.
Not published — Indication lists
Manufacturer indication lists for each probe are not published. Permitted indications are determined by Australian regulatory approvals and operator qualifications.
Not published — Accessory inclusions
Handpiece and accessory inclusions are published only once confirmed for the final Australian configuration.
