Flagship — Series 7 · Diode Laser
Regent R7 Diode
1200W Multi-Wavelength Diode Laser
The Regent R7 is the flagship of the Regent range: a 1200W multi-wavelength diode platform combining a four-wavelength laser bar, a third-generation quick-release handpiece and compressor-based thermal management within a single console.

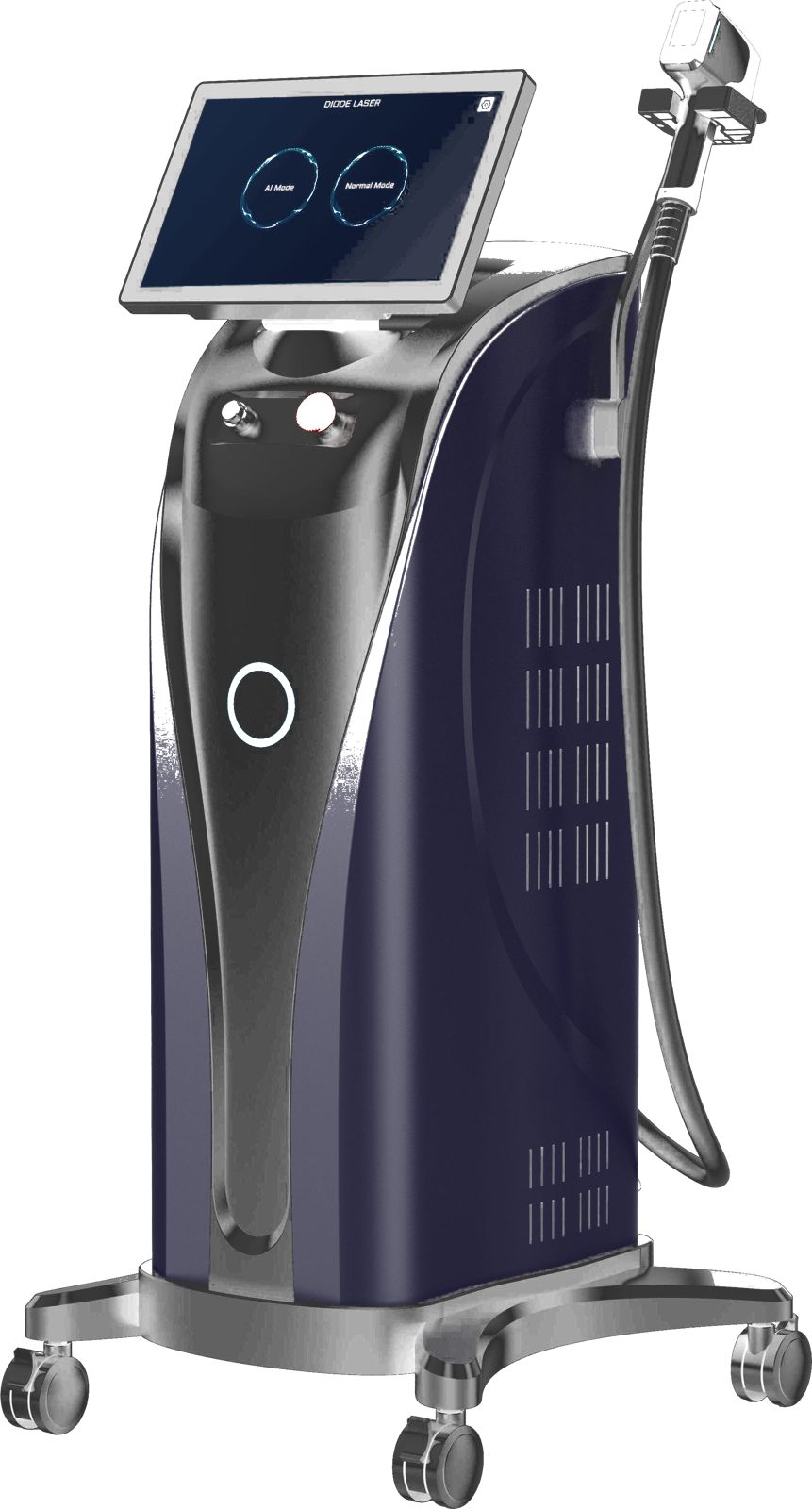

Front elevation — supplied configuration

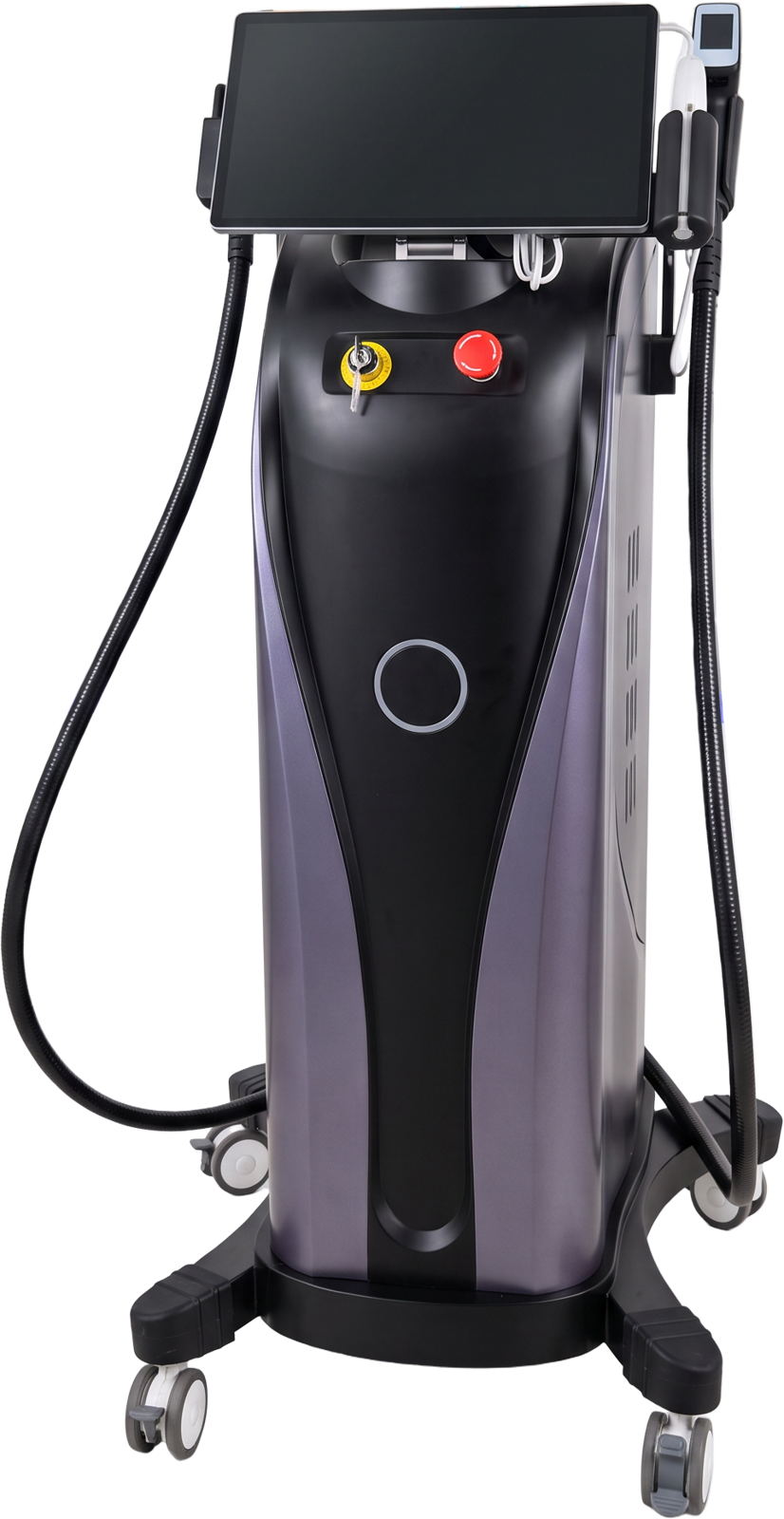

Three-quarter view — 15.6" Android display
Specification sheet
Full technical parameters, capability detail, warranty conditions and regulatory status for the Regent R7 Diode — PDF, prepared for professional review.
1200W
4 Wavelengths
5 Spot Options
15.6" Interface
Specifications
Technical parameters
- Laser power
- 1200W
- Wavelengths
- 755nm / 808nm / 940nm / 1064nm
- Spot sizes
- Ø8mm, 5×5mm, 10×10mm, 12×20mm, 20×40mm
- Pulse width
- 10ms – 200ms
- Frequency
- 1Hz – 10Hz
- Laser intensity
- 5% – 100%
- Contact temperature
- -5°C to 5°C
- Cooling system
- Air + water + compressor + sapphire cooling
- Interface
- 15.6" colour touch Android display
Capability
Intelligent operation
Two operating modes
The platform provides an intelligent mode that captures a skin sample, produces an analysis report and proposes recommended parameters, and a manual mode for operators who prefer to configure parameters themselves. The system does not diagnose medical conditions; clinical decisions remain with the treating professional.
Three manual profiles
Manual operation offers HR Preset (parameters matched to the previously configured state), HR Professional (fully operator-defined parameters) and a skin rejuvenation profile with six skin-type presets. Equipment capability is described here; permitted indications are determined by regulatory approvals and operator qualifications in the relevant jurisdiction.
Third-generation handpiece
A quick-release handpiece accepts five treatment heads with different spot sizes for different body areas. Magnetic seating aligns the spot head to the handpiece, and surface temperature of the handpiece is monitored in real time during operation.
Optical assembly
A sapphire contact crystal provides light and cold conduction at the skin interface, a collimator lens reduces beam divergence for more uniform energy delivery, and 360° Peltier cooling provides annular cooling around the treatment window.
Compressor cooling
Compressor refrigeration is rated for continuous operation, engaging at approximately 22°C and stopping at approximately 19°C (both adjustable) to hold the laser near its 20°C operating range. Stable operating temperature supports consistent energy output and laser service life.
Treatment Spots
Five interchangeable spot options
Interchangeable treatment spots support small-area precision through to larger treatment coverage, with a quick-release design for efficient changeover.
Selected spot
Ø8mm
Small-area precision work
Compliance note
Australian regulatory status for this platform is recorded in Regent's compliance system and is not published until documentation for the exact device, manufacturer and configuration has been verified. No TGA, ARTG, FDA, clinical or safety claim is made on this page.
Not published — Automatic spot recognition
Awaiting written confirmation of this function for the supplied configuration.
Not published — Clinical outcome figures
Manufacturer efficacy percentages are not published. Outcome claims require evidence review for the exact device and configuration supplied in Australia.
